Categories, PROPs, and control: a compositional language for circuit reasoning

When people first meet category theory, they often meet it as a strange zoo of abstract definitions.

This post takes a different route:

• start from circuits (things you can plug together),
• notice the two ways you compose them (serial + parallel),
• and then explain why categories, PROs, PROPs, and finally controlled PROPs are a very natural ”language layer” for reasoning about circuits by rewriting.

---

1. What is a category?

A category is the smallest piece of mathematics that can talk about composition in a principled way.

1.1 The definition

A category $\mathcal{C}$ consists of:

• objects $A,B,C,\dots$
• morphisms (arrows) $f:A\to B$
• a composition operation: if $f:A\to B$ and $g:B\to C$, then $g\circ f:A\to C$
• an identity arrow ${\mathrm{id}}_A:A\to A$ for every object $A$

subject to two axioms:

1. Associativity: $h\circ (g\circ f)=(h\circ g)\circ f$ whenever both sides make sense.
2. Unit laws: $f\circ {\mathrm{id}}_A=f$ and ${\mathrm{id}}_B\circ f=f$ for every $f:A\to B$.

That’s it.

A useful mental model is:

Objects are ”types of things”, morphisms are ”processes”, and composition is ”do one after the other”.

If you want a friendly motivational video, these ones have the right vibe:

1.2 A picture you can keep in your head

A category is like a directed graph where some paths are declared equal because they represent the same composite process.

flowchart LR
  A((A)) -->|f| B((B))
  B -->|g| C((C))
  A -->|g∘f| C

The whole point is: if you can compose, you can reason modularly.

1.3 Examples (this is where the definition stops being abstract)

Here are some categories you already know:

• Set objects = sets, morphisms = functions.

• Vect_k objects = vector spaces over $k$, morphisms = linear maps.

• Posets as categories Any partially ordered set $(P,\le )$ is a category where:

  • objects = elements of $P$
  • there is a morphism $p\to q$ iff $p\le q$
  • composition is forced (and unique when it exists).

  These are called thin categories: between any two objects there is at most one arrow.

• Monoids as categories (the ”one-object trick”) A monoid $(M,\cdot ,1)$ is exactly the same as a category with:

  • one object $\star$
  • morphisms $\star \to \star$ are elements of $M$
  • composition is multiplication, identity is $1$.

This last example is more important than it looks: it’s the first hint that algebraic structure can be encoded as categorical structure.

---

2. A little history and why anyone invented this

Category theory was introduced by Eilenberg and Mac Lane (1940s) as a way to formalize patterns of construction that kept recurring in topology and algebra.

But its modern ”engineering” motivation is almost embarrassingly simple:

If your subject has composable things, you want a calculus where ”plugging things together” is the primitive operation.

This is why categories show up in:

• programming language semantics (”programs are arrows”),
• logic (”proofs are arrows”),
• circuit theory (”circuits are arrows”),
• and of course quantum information (”processes are arrows”).

---

3. Categories are not enough for circuits

A plain category only knows how to do sequential composition.

But circuits have two compositions:

1. Sequential: plug outputs into inputs (”do this then that”).
2. Parallel: place side-by-side on separate wires (”do both independently”).

To model that second one, we need one extra layer of structure.

---

4. Monoidal categories: ”and also in parallel”

A monoidal category is a category equipped with a tensor product $\otimes$ that behaves like ”parallel composition”.

Concretely, it gives you:

• for objects: $A\otimes B$ (”system A together with system B”)
• for morphisms: $f\otimes g:A\otimes B\to A^{\prime }\otimes B^{\prime }$

and a distinguished unit object $I$ (”no system”), plus coherence laws ensuring everything associates nicely.

4.1 Why monoidal categories match circuit diagrams

String diagrams are the reason this is such a good fit:

• wires represent objects,
• boxes represent morphisms,
• vertical stacking is composition,
• horizontal juxtaposition is tensor.

In that world, many ”proofs” are just topological deformations of pictures.

---

5. PROs: a monoidal category of arities

Now we specialize monoidal categories to something very circuit-like.

A PRO (short for ”PROduct category”, historically) is:

a strict monoidal category whose objects are the natural numbers $0,1,2,\dots$, with tensor on objects given by addition:

$$m\otimes n:=m+n.$$

Interpretation: object $n$ is ”$n$ wires”.

A morphism $f:m\to n$ is ”a box with $m$ input wires and $n$ output wires”.

5.1 What PROs give you (and what they don’t)

PROs capture planar wiring: you can compose and put side-by-side, but you do not automatically get wire swaps.

This is already enough to encode a lot of algebra.

5.2 Example: the PRO for monoids

A (not-necessarily-commutative) monoid has two operations:

• multiplication $\mu :2\to 1$
• unit $\eta :0\to 1$

with equations:

• associativity: $\mu \circ (\mu \otimes \mathrm{id})=\mu \circ (\mathrm{id}\otimes \mu )$
• unitality: $\mu \circ (\eta \otimes \mathrm{id})=\mathrm{id}=\mu \circ (\mathrm{id}\otimes \eta )$

In a PRO, these equations are literally equations between diagrams.

This is one of the deep ideas behind PROs/PROPs:

They let you treat an algebraic theory as a diagrammatic rewriting system.

---

6. PROPs: PROs + permutations = real circuit wiring

Most circuit languages allow you to swap wires.

Categorically, this is symmetry.

A PROP (”PROduct and Permutation category”) is a PRO equipped with:

• for every $m,n$, a symmetry isomorphism ${\sigma }_{m,n}:m+n\to n+m$
• satisfying the usual coherence laws (so permutations behave like permutations)

Equivalently:

A PROP is a strict symmetric monoidal category whose objects are natural numbers.

6.1 Why quantum circuits fit in PROPs so naturally

In a circuit model:

• object $n$ means ”$n$ qubits” (or qudits, or wires in general)
• morphisms $n\to n$ are unitary circuits on $n$ wires
• tensor is ”put circuits side-by-side”
• symmetry is SWAP / wire permutation

So, at the level of pure syntax + wiring, a quantum circuit language is basically a presented PROP.

This is exactly what you want when building rewrite engines: you don’t want every rule to keep re-proving ”SWAP behaves like a swap”.

---

7. Presentations: ”a circuit language = generators + relations”

If you’ve seen group presentations (”generators and relations”), this is the same idea, one categorical level up.

A presented PROP consists of:

• a set of generating gates (morphisms of various arities)
• a set of equations (relations) between diagrams
• and then you take the free PROP generated by those gates modulo those equations

This is not just philosophy. It is literally how many ”complete rulebooks” are stated:

• choose generators,
• list rewrite rules,
• prove they are sound and (ideally) complete.

---

8. The idea of ”control” as structure

Now we come to the central theme that motivates controlled PROPs.

In circuits, control is not a single gate: it’s a pattern.

For qubits, controlling $X$ gives CNOT. Controlling a whole subcircuit gives a controlled subcircuit.

So control is naturally an operation on circuits, not just another circuit.

8.1 The pain point (why this matters for rewriting)

If control is treated only as a derived gadget, then a complete theory often needs rules that mention arbitrarily many control wires, because ”multi-control” is unbounded.

A different design choice is:

Treat control as a primitive constructor with its own coherence laws.

Then you get a powerful meta-rule:

If $f=g$, then their controlled versions are equal automatically.

That single principle is a massive compression of a rewrite theory.

---

9. Controlled PROPs (Delorme–Perdrix): control as a functor

One clean formalization is due to Delorme and Perdrix.

9.1 The core definition

Let $P$ be a PROP, and let $P_{\mathrm{endo}}$ denote the subcategory of endomorphisms (i.e. morphisms $n\to n$).

A control functor is a functor

$$C:P_{\mathrm{endo}}\to P_{\mathrm{endo}}$$

that:

• sends each object $n$ to $1+n$ (adds one control wire),
• sends each endomorphism $f:n\to n$ to a controlled version $C(f):1+n\to 1+n$,
• and satisfies a small set of coherence laws saying that nested controls commute appropriately and that control interacts well with the PROP’s symmetries.

In other words:

A controlled PROP is a PROP equipped with such a control functor.

9.2 What this buys you immediately

The defining property of a functor is that it preserves:

• composition: $C(g\circ f)=C(g)\circ C(f)$
• identities: $C(\mathrm{id})=\mathrm{id}$

So ”control distributes over doing things in sequence” is built in for free.

And because this is a functor on the equational theory:

if your rewrite rules prove $f=g$, you automatically get $C(f)=C(g)$.

That is exactly the kind of ”lifting” you want in a rewrite engine.

9.3 What does control mean semantically?

In finite-dimensional Hilbert spaces (the usual quantum model), the standard qubit control-on-$|1⟩$ operation is:

$$C_{|1⟩}(U)=|0⟩⟨0|\otimes I+|1⟩⟨1|\otimes U.$$

For qudits of dimension $d$, you can control on any basis value $|k⟩$:

$$C_{|k⟩}(U)=|k⟩⟨k|\otimes U+\sum _{\ell \ne k}|\ell ⟩⟨\ell |\otimes I.$$

This is the clean ”block-diagonal” picture: apply $U$ on the target only in the control subspace you selected.

9.4 Points: ”true” and ”false” for control

A pleasant extra feature is the notion of points for a control functor: two special states (diagrammatically: $0\to 1$ morphisms) that:

• annihilate the controlled operation (”false”)
• fire the controlled operation (”true”)

This captures, abstractly, the idea that plugging $|0⟩$ into the control wire makes the controlled circuit behave like identity, while plugging $|1⟩$ makes it behave like $U$.

---

10. Polycontrolled PROPs: control comes in families

For qubits there are already multiple reasonable ”control choices” (control on $|1⟩$, on $|0⟩$, on $|-⟩$, etc.), related by conjugating the control wire.

For qudits, something even more canonical happens:

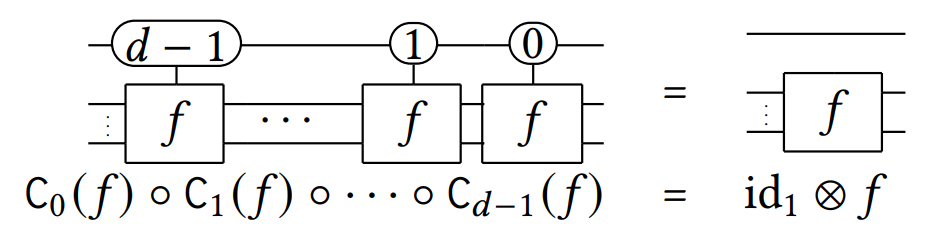

There are $d$ natural basis controls: control-on-$|0⟩$, …, control-on-$|d-1⟩$.

So one is led to a PROP equipped with a family of control functors:

$$(C_k{)}_{k\in [d]}.$$

Once you have multiple control functors, you can ask structural questions:

• do they commute (in some sense)?
• are they exhaustive (do they ”cover” all basis cases)?
• how do they relate by conjugation?

These are not ”quantum-specific” questions; they’re about the wiring logic of control.

---

11. Controlled PROPs (Heunen–Kaarsgaard–Lemonnier): eight equations for computational control

A complementary approach comes from Heunen, Kaarsgaard, and Lemonnier, who isolate control as a tiny equational theory.

11.1 Start from a ”crop” (a prop of endomorphisms + a NOT)

They introduce a controllable prop (they abbreviate ”crop”):

• a prop whose morphisms are endomorphisms $n\to n$,
• equipped with a distinguished involution $x:1\to 1$ (think NOT), with $x^2=\mathrm{id}$.

From this base, they freely adjoin controlled versions of morphisms.

11.2 Two controls (positive and negative)

They use two endofunctors:

• $C_1(f)$: ”control on 1” (positive control)
• $C_0(f)$: ”control on 0” (negative control)

and show you only need a small, interpretable list of equations—eight of them—to govern how control behaves.

11.3 What the equations mean (informal reading)

The eight equations include:

• functoriality: controlled composition and controlled identity behave as expected
• strength: control ignores extra unused wires (it behaves well under adding identities)
• colour change: positive and negative control relate by conjugating with NOT
• complementarity: doing both controls amounts to ”always do $f$”
• commutativity: controls of opposite polarity commute appropriately
• swap / swap coherence: nested controls interact properly with wire swapping

One way to read their result is:

Control is not ”a million different controlled gates”. It’s a small structural theory you can add on top of any base circuit theory.

They also connect this syntactic construction to a semantic universal property: the controlled theory corresponds to a free kind of ”rig-like” categorical structure.

---

12. Why this matters for rewriting and completeness

At this point you can see the strategic advantage:

• A PROP presentation of a circuit language separates:

  • wiring bureaucracy (structural laws)
  • fragment-specific gate identities

• A controlled PROP adds one more structural layer:

  • ”control is a constructor” with coherence laws

And this changes the shape of rewrite systems you can hope for.

The slogan becomes:

Make control structural, and local rewrite systems become possible.

---

References and further reading

• Delorme & Perdrix, Diagrammatic Reasoning with Control as a Constructor, Applications to Quantum Circuits: https://arxiv.org/abs/2508.21756

• Heunen, Kaarsgaard & Lemonnier, One rig to control them all: https://arxiv.org/abs/2510.05032

• My paper (the qudit completeness result framed via polycontrolled PROPs): https://arxiv.org/abs/2602.09873

• For a classic textbook introduction:

  • S. Mac Lane, Categories for the Working Mathematician.

• For string diagrams and monoidal categories (highly recommended once you’re comfortable):

  • A. Joyal & R. Street, work on string diagrams (many expositions exist).
  • P. Selinger, survey material on dagger compact categories and quantum processes.

Comments
